Are All Tractor Pto Shafts The Same?

When it comes to agricultural machinery, one of the most important components for power transmission is the tractor PTO shaft. PTO, or Power Take-Off, allows a tractor's engine power to be transferred to attached implements such as mowers, tillers, balers, and augers. However, not all tractor PTO shafts are the same — a misunderstanding of this can lead to mismatched components, inefficiency, or even equipment damage.

Understanding the Basics: What is a Tractor PTO Shaft?

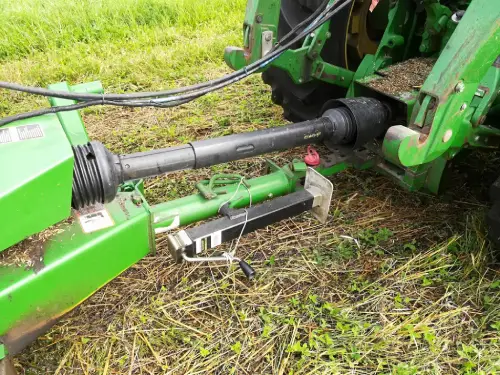

The tractor PTO shaft is a mechanical component that transmits power from the tractor to an implement. It consists of several interconnected parts including the shaft itself, universal joints, a yoke, and protective guards. This system allows machinery to run using the tractor's engine power without requiring a separate motor.

There are three major types of PTO configurations:

540 RPM (6-spline)

1000 RPM (21-spline or 20-spline)

Ground speed PTO

Each has specific applications and compatibility considerations. Understanding these categories is the first step in answering the key question: Are all tractor PTO shafts the same?

Are All Tractor PTO Shafts Interchangeable?

The short answer is no — not all PTO shafts are the same. There are several critical dimensions and features that vary across tractor models and implements. These differences affect compatibility and performance:

1. PTO Shaft Types by Size and Profile

The shaft itself can have different tube shapes and sizes:

Lemon shaped tubes

Star shaped tubes

Rectangular tubes

These are not interchangeable unless they share the same profile and dimensions. For example, a star tube shaft cannot be connected to a lemon tube implement.

2. Length Matters: Custom Tractor PTO Drive Shaft Lengths

Each implement requires a specific PTO shaft length. Using a shaft that's too long can cause compression and damage. Too short, and it might disconnect during operation. CXNOFIA manufactures tractor PTO drive shafts in various customizable lengths, ensuring safe and efficient operation for specific applications.

3. Spline Count and Shaft Diameter

The most common spline options are:

6-spline shafts for 540 RPM

21-spline and 20-spline shafts for 1000 RPM

These determine how the PTO shaft connects to the tractor and implement. Always verify the spline count before ordering tractor PTO parts.

Common Types of Tractor PTO Shafts (and How to Identify Yours)

When selecting or replacing a tractor PTO shaft, it's important to identify the exact type you need. Some standard PTO shaft types include:

Type 1: 540 RPM, 1 3/8" Diameter, 6 Spline

Common in small to mid-sized tractors

Suitable for mowers, post-hole diggers

Type 2: 1000 RPM, 1 3/8" Diameter, 21 Spline

Used in higher-speed applications

Common in more powerful tractors

Type 3: 1000 RPM, 1 3/4" Diameter, 20 Spline

Found in high powered or industrial tractors

If you're unsure, measure the shaft's diameter and count the number of splines. Also, check the operating speed requirements of your implement.

Choosing the Right Tractor PTO Parts for Your Application

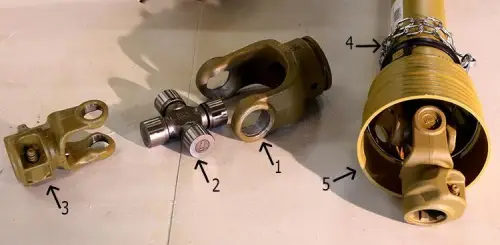

When sourcing tractor PTO parts, don't focus solely on the shaft itself. Here are some key components to pay attention to:

Universal Joints (U-joints): Allow for angle flexibility between the tractor and the implement.

Yokes: Attach the shaft to the implement and tractor.

Guard Shields: Safety components that prevent entanglement or contact with rotating parts.

Torque Limiters & Clutches: Protect the implement from overload.

CXNOFIA provides high-quality components that ensure durability, safety, and ease of operation, especially for demanding agricultural applications.

CXNOFIA's Expertise in Custom and Standard Tractor PTO Shafts

With decades of experience in manufacturing and supplying agricultural components, CXNOFIA specializes in offering both standard and custom tractor PTO shafts. What sets them apart is:

Precision manufacturing for consistent spline fitting

Wide compatibility with major tractor brands like Kubota, John Deere, Yanmar, and others

Durability tested PTO drive shafts made from premium materials

Engineering support for custom builds or replacements

Global distribution network for efficient delivery of tractor PTO shaft for sale

Whether you need a tractor PTO shaft for rototiller, hay rake, baler, or other implements, CXNOFIA's technical team ensures your equipment runs smoothly.

Long-Tail Keywords and Search Terms You Should Know

To further understand the industry and support your search for quality components, it helps to know the most common long-tail keywords and what they relate to:

tractor pto shaft for sale: General market availability, including standard and aftermarket options

tractor pto drive shaft replacement: Indicates a need for a custom fit or upgraded shaft

tractor pto parts diagram: Useful for identifying parts and assembly during repairs

pto shaft for rototiller: Niche use case requiring specific length and torque ratings

By incorporating these into your knowledge base, you'll be able to source parts more effectively and avoid costly mismatches.

Common Mistakes to Avoid When Purchasing Tractor PTO Shafts

When selecting or replacing PTO shafts, many operators make common errors that can result in malfunction or even equipment failure:

Ignoring spline count and profile: A misfit spline will not engage and can damage the tractor's PTO stub shaft.

Wrong tube length: Always measure compressed and extended lengths carefully before ordering.

Skipping guards or safety features: Safety is not optional — guard shields and clutches prevent serious injuries.

Overlooking rotational speed: Don't mismatch a 540 RPM implement with a 1000 RPM tractor shaft.

CXNOFIA provides guidance documents and technical drawings to help customers avoid such issues.

To answer the original question: Are all tractor PTO shafts the same? — definitely not. Every detail matters — from shaft profile and length to spline count and operating speed. Selecting the wrong tractor PTO shaft can lead to breakdowns, equipment damage, or even safety risks.

When buying or replacing tractor PTO parts, rely on experienced suppliers like CXNOFIA who understand the nuances of agricultural machinery and can guide you through specifications. While their products speak for themselves in terms of quality and reliability, this article is meant to arm you with the technical insights to make informed, safe, and cost-effective decisions — whether you're operating a family farm or managing a large-scale agricultural enterprise.
