Are PTO Shafts Adjustable?

Power Take Off (PTO) shafts are essential components in modern agricultural machinery. They are the mechanical lifelines between tractors and implements, transmitting rotational energy from the tractor's engine to equipment like rotary tillers, mowers, balers, and rotavators. A frequently asked question from both beginners and seasoned operators is: Are PTO shafts adjustable?

The short answer is yes—but the implications, engineering details, safety considerations, and application specific requirements are far more nuanced.

What Does an Adjustable PTO Shaft Mean?

An adjustable PTO shaft refers to a telescoping design that allows the length of the shaft to expand or contract depending on the relative positioning of the tractor and the implement. Unlike fixed shafts, farm equipment drive shafts use internal sliding profiles (often splined tubes) that can change length while transmitting torque.

This adjustability is crucial for:

Aligning with different hitch lengths or implement frames

Avoiding over-compression or over-extension when turning or going over uneven terrain

Reducing mechanical stress and enhancing operational lifespan

Most farm equipment drive shafts now come with some level of adjustability, and for good reason—it's practically impossible to achieve optimal equipment performance with a fixed-length driveshaft in a dynamic field environment.

Why PTO Shaft Adjustability Matters in Farm Equipment

Rotavators, tillers, and other agricultural machines are typically hitched at different angles and distances. An adjustable PTO shaft allows for that spatial variance, accommodating various working positions and hitch geometries.

For example:

When a rotary tiller is lowered into soil, the relative distance between the tractor's PTO output and the implement input changes.

In this instance, an inflexible driveshaft could bind or damage both the tractor and the tiller gearbox.

A PTO shaft for rotavator typically needs more flexibility than one used for stationary equipment. That's why models with longer splined profiles and multiple length configurations are preferred in tillage machinery. CXNOFIA offers a range of PTO shaft options for such field specific needs, ensuring compatibility and reliability.

Key Features of Adjustable PTO Driveshafts

To function effectively, an adjustable PTO shaft integrates several design elements:

a. Telescoping Inner Tubes

These tubes slide within each other to expand or contract the shaft's overall length. They are usually splined to maintain rotational integrity while adjusting.

b. Shear Bolts or Clutch Systems

These prevent mechanical overload by breaking or slipping before the PTO shaft or implement gearbox is damaged.

c. Locking Pins and Yokes

These secure the shaft ends to both the tractor and implement. Even when adjustability is offered, safety and locking mechanisms must ensure the shaft remains securely fastened.

d. Customizability

A custom PTO shaft can be engineered to fit uncommon machinery, imported equipment, or experimental farm prototypes. CXNOFIA, for instance, provides custom fabrication services for clients who need non-standard lengths, spline sizes, or clutch configurations.

When Should You Adjust Your PTO Shaft?

Operators must frequently adjust PTO shafts under the following conditions:

Before Operation: To ensure the shaft is neither too long (causing compression under load) nor too short (risking detachment).

When Switching Implements: Different implements have different input positions. An adjustable shaft must be resized to suit.

During Seasonal Maintenance: Over time, shafts can become stuck due to rust or grime. Regular disassembly and lubrication allow them to adjust smoothly when needed.

Tip: Always perform adjustment with the tractor turned off, and follow the PTO manufacturer's instructions. Incorrect adjustment can lead to severe equipment failure or injury.

Common Problems with Improperly Adjusted PTO Shafts

Failure to adjust PTO driveshafts correctly can result in:

Premature wear on U-joints

Gearbox or transmission damage

Vibration and excessive noise

PTO disengagement during operation

These issues are costly, not only in terms of repair, but also in lost productivity. That's why experienced agricultural mechanics often recommend checking the shaft's minimum compression length and maximum extension limit before every deployment.

PTO Shaft Adjustment and Compatibility with Tractor Sizes

Not all tractors use the same PTO configuration. Small tractors (under 50 HP) often have Category 1 hitch systems, whereas larger tractors use Category 2 or 3. The size and horsepower of the tractor determine the:

PTO output shaft diameter

Spline count (6-spline, 21-spline, etc.)

Required driveshaft torque rating

It's important to use an adjustable PTO shaft that fits your tractor's category and power output. CXNOFIA's inventory covers a wide range of horsepower ratings and spline configurations, suitable for global tractor brands.

Best Practices When Selecting Adjustable PTO Driveshafts

When shopping for a new adjustable PTO shaft, consider the following:

Measure the distance between the PTO output and implement gearbox when the machine is hitched.

Account for motion range, especially vertical movement of 3-point hitches.

Choose the correct spline pattern to match the tractor and implement input/output.

Ensure proper safety guards are intact and well-lubricated.

Also, check for certification standards such as CE or ISO, particularly if purchasing from global suppliers.

Where to Find Quality Adjustable PTO Shafts

Whether you're looking to buy a PTO shaft for your tiller or seeking PTO shafts for sale for your dealership or farm fleet, quality and compatibility are key. While local dealers offer convenient access, online suppliers like CXNOFIA have the added advantage of:

Extensive product range (standard and custom models)

Detailed specifications and technical support

Competitive factory-direct pricing

Global shipping to accommodate various agricultural markets

Though this article is focused on information, it's worth mentioning that CXNOFIA has a strong reputation for supplying durable farm equipment drive shafts, making it a reliable reference when sourcing components.

Adjustability Is Essential, Not Optional

The flexibility offered by an adjustable PTO shaft is not merely a convenience—it's a necessity for modern agricultural operations. As machinery becomes more specialized and diverse, the demand for customizable and reliable PTO driveshafts continues to grow.

Farmers, mechanics, and OEMs alike should understand:

The importance of correct shaft length

The risks of improper adjustment

The benefits of compatibility and custom design

For those working with rotary tillers, rotavators, and a wide variety of tractor implements, having an adjustable, high quality PTO shaft for rotavator and other tools is foundational to safe, efficient farming.

By staying informed and sourcing from dependable suppliers like CXNOFIA, you can ensure your machinery operates at peak performance—season after season.

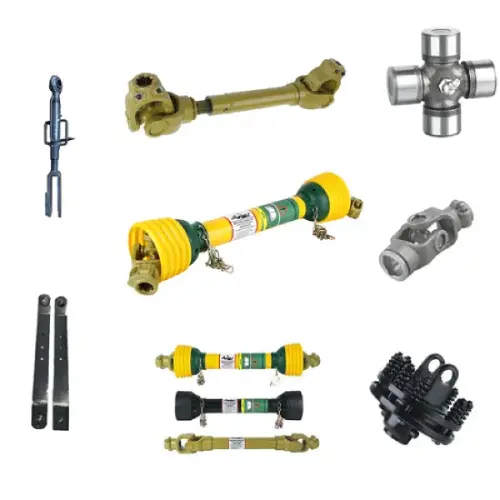

Explore our farm equipment drive shafts, widely used to power various pieces of agricultural machinery, including balers, chippers, forest machinery, forestry flail mowers, power harrows, rotary tillers, round balers, snow blowers, spading machines and more, precisely engineered for john deere or kubota. Manufactured by CXNOFIA—an experienced and trusted supplier of custom pto shaft in China—these durable pto driveshafts deliver outstanding performance and long lasting reliability. Benefit from competitive pricing, fast worldwide shipping, hassle free returns, and exclusive limited time offers. Discover the proven quality and dependability of CXNOFIA today.
