How Does A Tractor 3 Point Linkage Disc Plough Work?

2024-12-23

The tractor disc plough, especially when integrated with a 3 point linkage system, plays a pivotal role in modern agriculture. It combines the robustness of a disc plough with the convenience and versatility of the three point linkage, offering superior soil preparation, enhanced efficiency, and ease of operation. Understanding its functionality requires an exploration of its components, operational mechanisms, and the benefits it provides to farmers. Below, we delve into the intricate workings of a three point linkage disc plough.

The Basics of a 3 Point Linkage Disc Plough

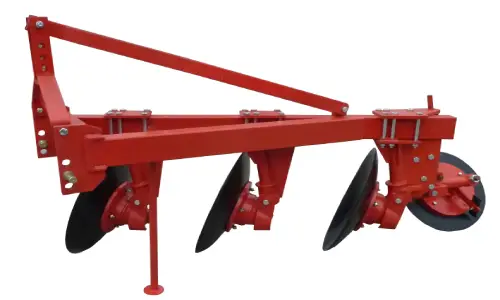

A three point linkage disc plough consists of a series of concave discs mounted on a frame that is connected to the tractor via the three point linkage. This attachment system is made up of three crucial components: two lower lift arms and a top link. These elements create a triangular connection that securely attaches the disc plough to the tractor. The linkage enables efficient power transfer from the tractor to the plough, ensuring effective soil penetration and turnover.

The discs are designed to cut, lift, and invert the soil. Their concave shape helps in breaking the ground, turning it over, and creating a fine tilth, ideal for planting crops. The three point linkage allows for precise control over the depth and angle of ploughing, making it a preferred choice for various soil types and agricultural needs. This system is not only integral to rear-mounted ploughs but is also replicated in front-mounted systems, enabling tractors to handle multiple implements simultaneously for combined operations.

The three point linkage system is categorized into four main categories—1, 2, 3, and 4—with increasing size and strength. There' s also a sub category, 1N, specifically for narrow track tractors often used in orchards and vineyards. These standardized dimensions ensure compatibility with different tractor models and implements, enhancing the versatility of the system.

Operational Mechanism of the three point Linkage System

The 3 point linkage disc plough operates via the hydraulic lift system of the tractor, which raises, lowers, and tilts the plough as needed. The linkage ensures that the plough remains stable and aligned during operations. Here' s how the components interact:

Lower Lift Arms: These arms are hinged to the tractor frame, allowing rotation within a specific arc. They serve as the primary support for the 3 point linkage disc plough, carrying the majority of its weight.

Top Link: The adjustable top link stabilizes the 3 point linkage disc plough, maintaining its vertical alignment. By rotating the threaded sleeve, the length of the top link can be adjusted, influencing the tilt of the plough and thus the depth of soil penetration.

Adjustable Tie Rods and Chains: These components control the lateral sway of the lower arms, ensuring the plough remains steady during operation, even on uneven terrain.

When the tractor moves forward, the plough discs cut through the soil. The hydraulic system adjusts the position and angle of the plough, allowing the operator to maintain optimal efficiency and uniformity. The system' s design minimizes manual effort, making coupling and decoupling of the tractor disc plough a hassle free process. Additionally, it accommodates different categories of ploughs, as standardized by the size of the attachment triangle, ensuring compatibility with various tractor models.

Moreover, the hydraulic controls enable precise depth adjustments, ensuring uniform soil preparation. Operators can easily manage challenging terrains or adjust to varying soil conditions by modifying the plough' s angle and depth settings. This flexibility is vital for modern farming, where efficiency and adaptability are paramount.

Advantages of Using a 3 Point Linkage Disc Plough

The integration of a three point linkage system with a disc plough offers numerous advantages, enhancing its functionality and versatility. Some of the key benefits include:

Improved Efficiency: The precise alignment of the 3 point linkage disc plough ensures consistent soil turnover, reducing the need for multiple passes and saving time and fuel.

Versatility: The system can accommodate a wide range of implements, allowing the tractor to be used for ploughing, tilling, and other agricultural tasks.

Ease of Operation: The hydraulic lift system simplifies the adjustment of 3 point linkage disc plough depth and angle, making the process less tiring for operators.

Enhanced Safety: The robust attachment mechanism ensures that the tractor disc plough remains securely connected to the tractor, even in challenging conditions.

Adaptability: The ability to mount the 3 point linkage disc plough on the front or rear of the tractor enables the use of multiple implements simultaneously, facilitating combined operations and improving productivity.

Reduced Wear and Tear: By ensuring proper alignment and balance, the system minimizes strain on both the tractor and the implement, prolonging their operational lifespan.

These advantages make the three point linkage disc plough an indispensable tool for modern farming, particularly for tasks such as preparing seedbeds and managing tough soil conditions. It also allows for seamless switching between different implements, streamlining operations and reducing downtime.

Applications of the three point Linkage Disc Plough

The tractor disc plough with a three point linkage system is widely used in various agricultural applications, thanks to its adaptability and efficiency. It is particularly effective in the following scenarios:

Primary Tillage: The tractor disc plough is ideal for breaking virgin land or ploughing fields after harvest. Its deep penetration and soil inversion capabilities prepare the ground for planting by burying crop residues and weeds.

Heavy Soil Conditions: The robust design and hydraulic control make it suitable for ploughing clay, loamy, and other heavy soil types, where traditional ploughs may struggle.

Specialized Farming: Narrow track tractors equipped with a 1N sub category linkage system are commonly used in vineyards, orchards, and other specialized farming applications, where precision and maneuverability are crucial.

Combined Operations: The ability to mount implements on both the front and rear of the tractor allows for simultaneous operations, such as ploughing and seedbed preparation, increasing efficiency and reducing operational costs.

Crop Residue Management: The disc plough is highly effective in managing crop residues by burying them deep into the soil, which aids in decomposition and improves soil fertility.

Contour Ploughing: For farms located on hilly or sloped terrains, the three point linkage system ensures that the plough follows the land' s contours, preventing soil erosion and water runoff.

In conclusion, the three point linkage disc plough represents a perfect blend of traditional ploughing technology and modern engineering. Its effectiveness, ease of use, and versatility make it an invaluable asset for farmers, ensuring optimal soil preparation and improved agricultural productivity. As farming practices evolve, the three point linkage system continues to play a pivotal role in driving efficiency and innovation in the field.

3 point linkage disc plough for sale! Choose from our extensive line of 1LYQ Series tractor three point linkage disc plough, crafted by CXNOFIA, a reputable Chinese supplier. Enjoy top quality disc plough for mini tractor at competitive prices, quick international shipping, convenient returns, and limited time deals!
