How Does Hub Reduction Work?

In the complex world of vehicle engineering, power transmission plays a crucial role in achieving optimal efficiency and performance. One of the most fascinating and often overlooked systems that contributes to this is hub reduction, particularly found in heavy duty vehicles and agricultural equipment such as tractors.

Whether you are an engineer, a machinery enthusiast, or a farmer looking to understand your equipment better, knowing how reduction hubs function can shed light on how modern tractors and off-road machines deliver both power and durability where it matters most — at the wheels.

What Is Hub Reduction?

Hub reduction, also known as planetary hub reduction or final reduction, refers to a mechanical gear system located in the wheel hub of a vehicle. Its main function is to provide additional gear reduction at the wheels, which reduces the stress on the drivetrain and enhances torque at low speeds.

In a typical drivetrain, power flows from the engine to the transmission, then to the differential and finally to the wheels. In vehicles with hub reduction, an extra set of gears inside the reduction hub provides one final gear ratio reduction before the power reaches the wheels.

This extra reduction allows the drivetrain to handle heavy loads more efficiently and minimizes the need for large differentials or complex transmission systems.

Components of a Hub Reduction System

The reduction hub usually consists of the following parts:

Sun Gear: Located at the center, this gear receives input from the axle shaft.

Planet Gears: Positioned around the sun gear, they rotate around it while also engaging with the outer ring.

Ring Gear: A stationary outer gear fixed to the hub casing.

Planet Carrier: Holds the planet gears and transmits torque to the tractor wheel hub.

This planetary gear set forms a compact, robust system capable of achieving a significant torque multiplication without enlarging the size of the axle or differential.

Advantages of Hub Reduction

1. Enhanced Torque Output

The most notable advantage of hub reduction is its ability to boost torque delivered to the wheels. This is crucial in off-road applications and low-speed operations such as those seen in farming and construction.

2. Reduced Axle and Transmission Load

Since the reduction hub performs part of the gear reduction near the wheel, it lightens the load on other drivetrain components like the differential and main gearbox.

3. Compact Power Transmission

Hub reduction systems allow manufacturers to build more compact drivetrains without compromising performance. The gearing inside the tractor wheel hub achieves a significant reduction ratio in a confined space.

4. Better Traction and Ground Control

For vehicles operating in muddy, uneven, or slippery conditions, the improved torque control provided by hub reduction can significantly improve wheel traction and vehicle handling.

5. Longer Component Lifespan

Because power is more evenly distributed throughout the drivetrain, wear and tear on major components is reduced, leading to lower maintenance costs and a longer service life.

Hub Reduction in Tractors

Tractors, especially those used in heavy duty agricultural or industrial applications, benefit enormously from hub reduction technology. Here's how:

1. Improved Power Distribution

In a traditional tractor, most of the torque is delivered through the differential to the wheels. With hub reduction, part of the reduction takes place right at the wheel, ensuring that the tractor hub manages the mechanical stress more effectively.

This is especially useful for tractors hauling trailers, plowing fields, or navigating tough terrain. The reduction hub enables tractors to deliver steady, powerful wheel rotation even at low engine speeds.

2. Increased Load Carrying Capacity

Thanks to reduced stress on the transmission and axles, tractors equipped with reduction hubs can carry or pull heavier loads. This makes them suitable for demanding fieldwork or for use with specialized attachments and implements.

3. Ideal for 4WD Tractors

In four-wheel-drive tractors, the complexity of the drivetrain is amplified. A reduction hub simplifies this by performing gear reduction locally at each wheel, providing better balance and traction, especially when climbing inclines or navigating uneven land.

4. Ease of Maintenance

Modern tractor wheel hubs with reduction gears are designed to be sealed and well-lubricated. This minimizes the need for frequent servicing while still delivering top performance. In some systems, modular designs allow for easier replacement of worn gears without dismantling the entire axle.

Types of Tractors That Use Hub Reduction

While hub reduction is more common in heavy duty and high-horsepower tractors, it is also seen in:

Utility Tractors: For fieldwork requiring consistent torque and traction.

Row Crop Tractors: For precision farming with heavy attachments.

4WD and Articulated Tractors: Where wheel synchronization and power distribution are critical.

Specialty Tractors: Including vineyard, orchard, and forestry tractors operating in challenging terrains.

Reduction Hub vs. Conventional Axle Gearing

Let's compare the reduction hub to traditional drivetrain systems:

Feature Reduction Hub Conventional Axle Gearing

Torque Delivery Higher torque at wheels Moderate torque

Load on Differential Lower due to final-stage reduction Higher due to full load transfer

Maintenance Complexity Slightly higher due to gear assembly Lower, simpler structure

Efficiency in Tough Terrain Excellent Moderate

Cost Higher upfront investment Lower upfront cost

Though the reduction hub may increase initial costs, the benefits in durability, power, and long-term performance outweigh the expenses for many farmers and equipment operators.

Why Hub Reduction Matters in Modern Agriculture?

As agriculture evolves with more mechanized and high-precision equipment, tractors must be more robust, fuel efficient, and capable of handling various attachments and tasks. A well-designed tractor hub system with hub reduction allows farmers to:

Work longer hours with less strain on the machinery

Reduce fuel consumption by optimizing power delivery

Operate in varied terrain without performance loss

Extend the service life of tractors and save on repair costs

In addition, tractor wheel hubs with reduction gears play a key role in minimizing soil compaction by distributing weight and torque more evenly — a significant concern in modern farming.

Where to Buy High Quality Reduction Hubs?

If you're looking for reliable reduction hubs or replacement parts for your tractor wheel hub, sourcing from reputable manufacturers is essential. Here are a few tips:

Look for OEM Grade Suppliers: These manufacturers offer components that match or exceed original specifications.

Choose Certified Exporters: Especially those specializing in custom tractor hub solutions for different models and brands.

Evaluate Materials and Engineering: Hardened steel, corrosion-resistant coatings, and precision machining are signs of quality.

Ask for Technical Support: A reliable supplier should provide installation guidance, compatibility checks, and maintenance tips.

Many Chinese manufacturers offer competitively priced tractor hub components and reduction hubs that meet international quality standards, making them a popular choice for global buyers.

Understanding how hub reduction works gives insight into one of the most effective engineering innovations used in tractors and heavy-duty vehicles. From improving torque delivery and enhancing off road performance to reducing drivetrain stress and increasing vehicle lifespan, the reduction hub plays a critical role in modern agricultural machinery.

For farmers, engineers, and machinery operators, investing in a high quality tractor hub or upgrading to a tractor wheel hub with reduction gearing can result in better performance, lower maintenance, and improved productivity in the field.

If you're in the market for reduction hubs, be sure to explore trusted suppliers who specialize in durable, well engineered parts built to withstand the rigors of agricultural work.

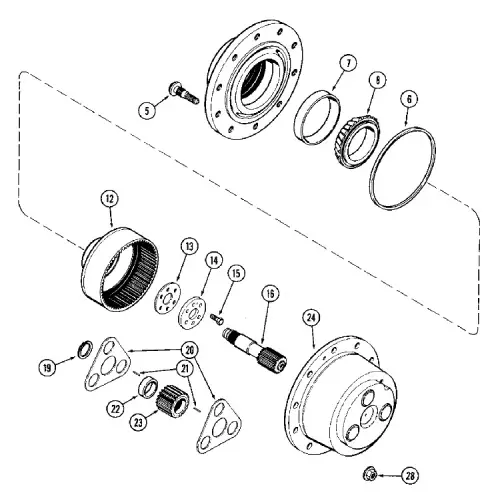

Discover our wide range of premium R271414 MFWD final reduction hub aftermarket parts for john deere tractors. Produced by CXNOFIA, a reliable Chinese supplier of JD tractor parts, this tractor wheel hub is designed to deliver exceptional performance and long lasting durability. Enjoy competitive pricing, swift international shipping, easy returns, and exclusive time limited offers. Place your order today!
