How To Replace Pins And Bushings On Excavator?

2024-09-27

As excavators are used over time, their components, particularly the mini excavator bucket pins and bushes for Kubota, experience wear and tear. While these parts are relatively easy to replace, having the right tips and guidance can make the process smoother. In this guide, we’ll provide helpful advice to ensure a hassle free replacement process.

What Are Mini Excavator Bucket Pins?

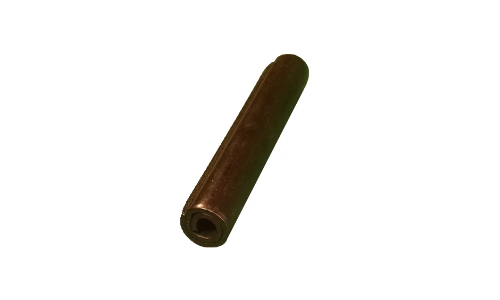

Mini excavator bucket pins for Kubota are metal rods that connect the bucket to the excavator's arm. They allow the bucket to pivot during digging and lifting operations. These pins serve as crucial attachment points for the bucket, ensuring it remains securely fastened to the excavator’s arm. Mini excavator bucket pins for Kubota typically include:

Ram Pins – Connect the hydraulic rams to the bucket for movement.

Dipper Arm Pins – Secure the bucket to the dipper arm (the smaller arm that connects to the bucket).

Boom Pins – Attach the bucket to the boom (the main arm of the excavator).

Bucket pins for Kubota need to be strong and durable to withstand heavy loads and frequent use, but they can wear down over time and may need to be replaced periodically.

How To Replace Mini Excavator Bucket Pins?

In case you're unfamiliar, mini excavator bucket pins for Kubota secure the bucket to the digger.

Initially, all mini excavator bucket pins for Kubota are firmly fastened, though their placement can vary depending on the machine.

Some excavators have a large nut and washer at the end of a pin for Kubota, while others feature a hole that allows a bolt to pass through. Additionally, some machines are designed with threads at the rear of the pin where a bolt can be screwed in.

Regardless of your excavator’s setup, the excavator pins for Kubota should be easy to remove when necessary.

Mini excavator bucket pins for Kubota located at the deeper end of the machine are relatively simple to take out. However, as you move up to the dipper arm and work your way to the kingpost through the boom, ensure the arm is adequately supported before removing the pins.

If you need to remove the boom to replace the kingpost bushes, use a forklift and sling or a crane to assist with lifting and repositioning.

Once all the mini excavator bucket pins for Kubota are removed, the bushes should follow. It's recommended to replace both the pins and bushes simultaneously, as they tend to wear out together. Replacing one without the other could lead to more significant issues down the line. Keep in mind that the specific design of these parts may vary depending on the manufacturer of your excavator.

How To Remove Digger Bushes

Before discussing the challenges of replacing digger bushes, the initial step is removing the old ones. Although this process can be tricky, it can be done methodically.

It's important to note that removing the bushes without causing damage can be difficult. However, since the bushes are already worn out—which is the reason for their replacement in the first place—causing damage during removal is not a concern.

However, it’s essential to protect the digger’s arms from any potential damage during the process. Here are some tips to help you remove the bushes with less hassle:

Apply force: For smaller excavators, using a hammer and bar works well, especially when the bushes are already weak and worn. Ensure the bar is larger than the bush’s internal diameter but smaller than the external diameter for better effectiveness.

Professionals who frequently handle bushes of various sizes often have engineers create a stepped tool that accommodates different bush sizes, making the process quicker and easier.

Attach a stud: Weld a stud to the bush so you can insert the bar through it and knock the bush out.

Weld around the bush for larger ones: For larger bushes, welding around the radius of the bush is helpful. As the weld cools, it contracts the bush, making it easier to remove.

Cut the bush out: You can also cut a slot in the bush’s wall, allowing it to shrink for easier removal. An oxy acetylene torch or a similar tool works well for this. However, be cautious not to cut into the digger’s arm, as repairing such damage can be costly.

Use a hydraulic press: A hydraulic press is another safe option. While not always easily accessible, if you can get one, use a hollow hydraulic cylinder for efficient and secure bush removal.

How To Replace Digger Bushes

Now that we've covered the process of removing old bushes from your digger, it's time to move on to replacing them with new ones. This step can also be challenging, requiring various tools and equipment to get the job done properly.

Hammers: Using a hammer is a straightforward method to insert new bushes, but you need to be careful not to crack or split the bush from excessive force. While many excavator bushes are made from induction hardened steel for improved durability, they can still break under heavy hammering.

Use Heat: You can also use heat to ease the replacement process. By applying heat to the bush housing, it will expand, allowing you to fit the new bush more easily before it cools and contracts. Be cautious to avoid damaging the digger's paint with the heat source.

Use the Cooling Method: Alternatively, instead of expanding the bush housing with heat, you can shrink the bush itself using the cooling method. This involves using liquid nitrogen (at -195°C) to cool the bush, making it smaller and easier to insert. However, this requires specialized equipment and training, so it's often best to consult an engineer.

Use a Hydraulic Press: A hydraulic press is another effective tool for replacing bushes, especially for larger excavators. You'll need a hollow hydraulic cylinder and an understanding of how to use it. The press can be combined with both the heating and cooling methods for optimal results.

When it comes to replacing excavator pins and bushes, a hydraulic press is considered one of the most efficient methods. If you're planning to use a hydraulic press, consider checking with cylinder suppliers for the necessary equipment.

Explore our extensive selection of excavator components for Kubota, including bucket pins for mini excavator. CXNOFIA, a renowned manufacturer from China, offers high quality excavator bucket pins for Kubota at competitive prices. Enjoy fast global shipping, hassle free returns, and take advantage of our limited time offers!
