Mechanical Link For Tractor: PTO Drive Shaft

When it comes to powering attachments and machinery in agriculture, few components are as essential and universally used as the tractor PTO drive shaft. Short for Power Take-Off, the PTO drive shaft is a mechanical link that transfers power from the tractor engine to a connected implement—such as a rototiller, mower, or baler. Understanding the details behind this vital system can help you select the right parts, maintain your equipment effectively, and optimize your farm's performance.

What Is a Tractor PTO Drive Shaft?

A PTO drive shaft is a mechanical component used to transfer power from a tractor to an implement. It works by coupling to the tractor’s PTO stub shaft and the implement’s gearbox, enabling power transmission through a rotating shaft.

This setup allows tools like rototillers, mowers, and augers to operate without their own engines, greatly simplifying agricultural tasks. The PTO shaft for rototiller applications is among the most commonly used in small to medium scale farming.

Types of PTO Shafts and Their Applications

To match various farm machinery needs, different farm PTO shafts are designed based on their size, shape, and torque capabilities. Understanding which type suits your implement is crucial to avoid equipment damage or safety risks.

1. Standard PTO Shaft (540 RPM and 1000 RPM)

Most tractors offer a 540 RPM or 1000 RPM PTO speed. The corresponding shaft must match this output to avoid inefficiency or wear. For example, PTO shafts for rototillers generally use the 540 RPM standard.

2. Telescoping PTO Drive Shafts

These have adjustable lengths that allow flexibility when attaching implements of different sizes. A telescoping PTO shaft can be compressed or extended during installation, making them ideal for versatile farming setups.

3. CV (Constant Velocity) PTO Shafts

Used in high angle operations like front-mounted snowblowers or spreaders, CV PTO shafts ensure smooth power transmission even at sharp angles.

Key Components of a PTO Shaft

A PTO drive shaft is composed of several parts, all of which need to be in good condition for effective operation.

Universal Joints – Enable rotational movement across angled connections.

Yokes – Connect the U-joints to the tractor or implement.

Safety Shields – Prevent accidental contact with the rotating shaft.

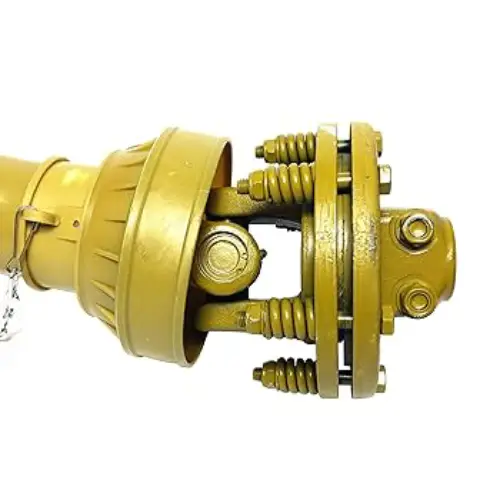

Shear Pins and Clutches – Provide overload protection to prevent mechanical damage.

Each component plays a vital role in ensuring the durability and safety of the system. Reputable suppliers like CXNOFIA offer replacement PTO shaft parts and complete systems tailored for various tractor models and implements.

How to Choose the Right PTO Shaft for Your Equipment

Choosing the wrong PTO shaft can result in reduced performance or even serious accidents. Here’s what to consider:

1. Shaft Length

Ensure the shaft is long enough when extended but doesn’t bottom out when compressed.

2. Horsepower Rating

The shaft must be capable of handling the power output of your tractor. Oversized or undersized shafts can wear out quickly or damage the implement.

3. Connection Compatibility

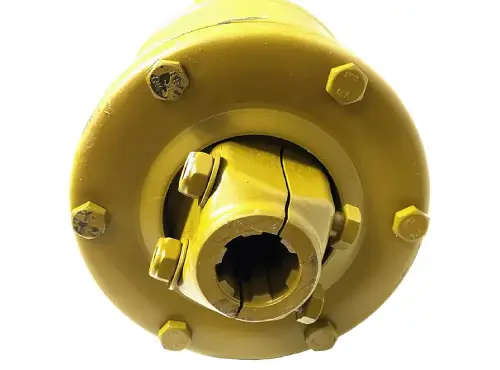

Match the spline count and yoke size of your PTO shaft with both your tractor and implement.

4. Application Type

Tools like rototillers require specific designs, such as reinforced PTO shafts for rototillers with better vibration resistance.

Benefits of High Quality PTO Shafts from CXNOFIA

CXNOFIA, a trusted name in agricultural parts manufacturing, specializes in aftermarket farm PTO shafts. Their focus on quality, material strength, and precision machining ensures that their products deliver:

Durable performance in harsh environments

Smooth and consistent power transmission

Compatibility with a wide range of tractors and implements

Easy maintenance and replacement of worn parts

By choosing quality PTO drive shafts, farmers can significantly reduce downtime and improve overall productivity.

Maintenance Tips for Your PTO Drive Shaft

Like all mechanical components, regular care of your PTO shaft will extend its lifespan and prevent breakdowns.

1. Lubricate Frequently

Grease the U-joints and telescoping shaft regularly to minimize friction and wear.

2. Check Safety Shields

Never operate a PTO drive shaft without intact shields. Replace damaged guards immediately.

3. Inspect for Wear

Look out for cracked yokes, worn splines, or loose connections. Replace damaged parts before use.

4. Store Properly

When not in use, keep your PTO shaft clean, dry, and supported to avoid bending.

Common PTO Shaft Issues and How to Troubleshoot

Despite their rugged design, PTO shafts can develop problems. Here are some frequent issues:

Vibration During Operation: May indicate bent tubing or worn U-joints.

Noise or Knocking Sounds: Often a sign of insufficient lubrication or failed bearings.

Overheating: Caused by overload or incorrect alignment.

When facing these issues, sourcing PTO shaft replacement parts from experienced suppliers like CXNOFIA ensures quick and reliable fixes.

The Importance of Sourcing from Trusted PTO Shaft Suppliers

In the global market, there are countless PTO shaft producers. However, the importance of quality and compatibility cannot be overstated.

CXNOFIA stands out among suppliers due to their:

Rigorous quality control standards

Wide product range, including PTO shafts for rototillers, balers, and other implements

Commitment to precision-engineered components

Responsive customer support and global shipping

Whether you are repairing old equipment or assembling a new farming implement, partnering with a trusted brand like CXNOFIA ensures you get parts that last.

Optimizing Farm Machinery with the Right PTO Drive Shaft

The tractor PTO drive shaft is a critical component for modern agriculture. Whether you're running a small farm or managing large scale operations, having the right PTO shaft—from a durable farm PTO shaft to specialized PTO shafts for rototillers—can significantly boost productivity, safety, and equipment longevity.

With expertise, manufacturing excellence, and customer focused solutions, CXNOFIA provides farmers with reliable PTO shaft products that meet the demands of modern farming.
