What Does A PTO Shaft Do?

In the world of modern farming, the ability to transfer power from a tractor to various implements efficiently is vital for productivity. One of the essential components that makes this possible is the PTO shaft—short for Power Take Off shaft. But what does a PTO shaft really do, and why is it so crucial in agriculture?

What Is a PTO Shaft and Why Is It Important in Agriculture?

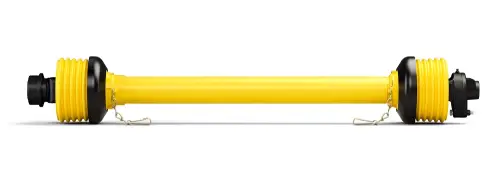

A PTO shaft is a mechanical component that connects a tractor to an external implement or attachment (like a rotary tiller, mower, or baler) and transfers power from the tractor's engine to operate that equipment.

Instead of each piece of machinery needing its own engine, the PTO shaft allows one tractor to drive multiple implements using its power source. This dramatically increases operational efficiency and cost-effectiveness on the farm.

How Does a PTO Shaft Work? Power Transfer in Motion

The working principle of a PTO shaft is relatively straightforward, but its application is highly technical:

The tractor's PTO stub shaft rotates at a specific speed—commonly 540 RPM or 1000 RPM.

The PTO shaft connects to this stub and transmits rotational power through a series of universal joints and telescoping tubes.

The other end of the PTO shaft connects to the implement's gearbox, driving the machine's operation.

This seamless transfer of power allows farmers to control attachments directly from the tractor's cabin.

Types of PTO Shafts for Farm Equipment: Choosing the Right One

Not all PTO shafts are created equal. There are several types of PTO shafts for farm equipment, each suited to specific applications, torque levels, and speed requirements.

1. Standard PTO Shafts

Used in common applications like rotary tillers, sprayers, and hay tools.

Come in sizes matched to torque needs and implement requirements.

2. Adjustable PTO Shaft

Features a telescoping mechanism that adjusts the shaft length depending on the space between the tractor and implement.

Ideal for operations that involve multiple implements or varying field conditions.

3. Wide Angle PTO Shafts

Designed for tight turns and uneven terrain.

Contains dual universal joints to maintain smooth power transfer at extreme angles.

4. Constant Velocity (CV) PTO Shafts

Used in high speed or high-load situations, like balers and forage harvesters.

Reduce vibration and provide consistent rotation without interruptions.

CXNOFIA provides all the above types, manufactured to match both domestic and international standards for compatibility and reliability.

The Role of PTO Parts in Safe and Efficient Operation

A PTO shaft is more than just a rod—it's a system made up of several PTO parts, each playing a critical role in safety, durability, and efficiency:

Universal Joints (U-joints): Enable the shaft to flex and rotate at angles.

Telescoping Inner and Outer Tubes: Allow for length adjustments as needed.

Yokes: Connect the shaft to the tractor and implement.

Safety Guards and Shields: Prevent contact with rotating components, ensuring operator safety.

Torque Limiters or Shear Bolts: Protect the implement and tractor by disconnecting the drive under overload.

Over time, wear and tear on these parts is inevitable, making regular maintenance and quality replacements essential. CXNOFIA offers precision-engineered PTO parts to meet diverse farm machinery needs.

When and Why You Need Adjustable PTO Shafts

In agricultural environments where operators regularly switch between different attachments, an adjustable PTO shaft offers critical flexibility. These shafts:

Eliminate the need for multiple fixed-length PTOs.

Adjust telescopically to prevent pressure on bearings and joints.

Reduce the risk of component damage due to improper fit.

Whether working with mowers, post-hole diggers, or rotary cutters, farmers can benefit from a more universal and adaptable PTO solution.

Agricultural PTO Shafts and Safety: What Every Operator Should Know

While agricultural PTO shafts are essential for productivity, they also pose serious safety risks if improperly used. According to agricultural safety data, PTO-related injuries are among the most common and severe.

Here are key safety practices:

Always use protective shielding on rotating parts.

Disconnect the PTO shaft before dismounting from the tractor.

Avoid loose clothing around PTO-driven implements.

Regularly inspect shafts and guards for wear, damage, or missing parts.

Modern PTO shafts from trusted suppliers like CXNOFIA are designed with reinforced guards, precision balance, and robust materials to reduce risk and extend the operational life of both equipment and components.

Common PTO Shaft Applications in Farming

PTO shafts are used in dozens of common and specialty farming operations. Some of the most common PTO shaft applications include:

Rotary Tillers – Mix and prepare soil

Mowers and Brush Cutters – Clear large grassy areas

Balers – Compress hay and straw into compact bales

Spreaders and Sprayers – Distribute fertilizer or chemicals

Post Hole Diggers – Drill into soil for fencing

The right PTO shaft ensures that these machines perform efficiently, safely, and without undue stress on either the tractor or the implement.

Sourcing Quality Agricultural PTO Shafts: What to Look For

When purchasing agricultural PTO shafts, either as original equipment or aftermarket replacements, consider the following:

Material Quality: Look for heat-treated steel for durability.

Precision Engineering: Shaft balancing and spline accuracy are key.

Compatibility: Check spline count, shaft diameter, and length.

Adjustability: If working with various implements, opt for adjustable models.

Manufacturer Reputation: Work with experienced producers like CXNOFIA that specialize in tractor power transmission systems.

CXNOFIA has built a solid reputation among global customers for delivering high-performance PTO shafts that meet ISO and CE standards, offering excellent service life and operational efficiency.

What a PTO Shaft Does and Why It Matters

A PTO shaft plays a central role in connecting tractor power to essential farm implements, eliminating the need for individual engines and improving operational flexibility. From basic tillage to complex harvesting tasks, PTO shafts for farm equipment are essential to the functioning of modern agriculture.

Understanding the types, components, safety practices, and compatibility of PTO systems enables farm operators to make informed decisions that lead to better performance and fewer breakdowns. With expertise and quality assurance from companies like CXNOFIA, farmers can rely on advanced adjustable PTO shafts and precision PTO parts tailored to meet their needs.

Next time you ask, "What does a PTO shaft do?", remember that it does more than rotate—it drives the entire productivity of your farm.
