What is a Differential Pinion Seal?

In the world of tractor drivetrains, many components operate together to ensure seamless power transfer from the engine to the wheels. One such component, often overlooked but critically important, is the differential pinion seal. For those who work with or manufacture differential systems—such as the team at CXNOFIA, which specializes in high  performance drivetrain components—understanding the function and maintenance of the 3C091-43110 differential pinion seal is essential for product longevity and performance.

Understanding the Role of the Differential Pinion Seal

What Is a Differential Pinion Seal?

A 3C091-43110 differential pinion seal is a type of oil seal located at the front of the differential housing, where the pinion gear shaft extends into the differential assembly. Its primary role is to prevent gear oil from leaking out of the differential, especially around the pinion yoke, which connects the driveshaft to the differential.

When in operation, the pinion differential gear rotates at high speeds and is subjected to substantial torque. The pinion seal ensures that the gear oil used to lubricate internal parts like the differential pinion bearing stays inside the housing, thereby reducing friction, wear, and heat.

Why the Pinion Seal Matters in Differential Systems?

Prevents fluid loss: Without an effective seal, oil leaks can lead to differential damage due to inadequate lubrication.

Protects against contamination: It keeps out dirt, water, and debris from entering the housing and damaging internal parts.

Ensures system longevity: A properly functioning pinion seal differential system reduces the risk of overheating and part failure.

For manufacturers like CXNOFIA, engineering pinion seals with durable elastomers and precision fits is essential to support high performance applications.

How the Differential Pinion Seal Works with the Pinion Gear Differential?

Understanding the Pinion Gear Differential Setup

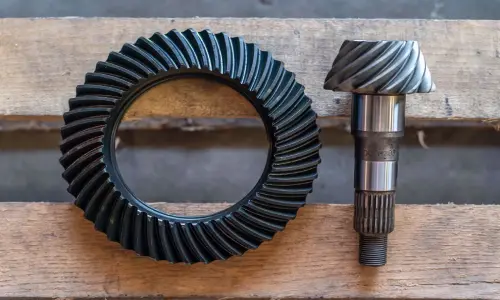

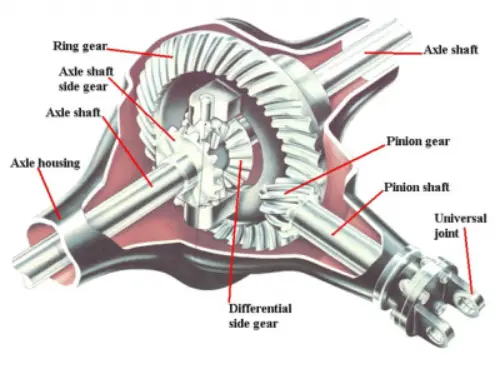

The pinion gear differential refers to the arrangement where the pinion gear engages the ring gear to transfer torque from the driveshaft to the axles. This gear is mounted on a shaft supported by differential pinion bearings.

The pinion seal surrounds the end of this shaft at the point where it exits the housing, creating a barrier between the moving gear components and the external environment.

Components Involved:

Pinion Gear: Drives the ring gear inside the differential.

Differential Pinion Bearing: Supports the pinion shaft and ensures smooth rotation.

Yoke and U joint: Connect the driveshaft to the pinion gear shaft.

Pinion Seal: Sits around the pinion shaft, sealing in oil and sealing out contaminants.

In premium applications, such as those involving CXNOFIA manufactured differentials, precision in these components ensures durability under heavy duty loads.

Symptoms of a Failing Differential Pinion Seal

Over time, the differential pinion seal can wear out due to age, heat, or mechanical stress. Recognizing the signs of a failing seal can prevent expensive repairs.

Common Signs Include:

Visible oil leaks at the front of the differential housing.

Low differential fluid levels, leading to unusual noises.

Burning oil smell during driving.

Vibration from the rear axle when accelerating (due to oil starvation affecting bearings).

For vehicles operating in harsh conditions—such as commercial trucks or off-road machinery—CXNOFIA recommends periodic inspection of the pinion differential seal to prevent these issues.

The Importance of Differential Pinion Bearings in Seal Performance

What Is a Differential Pinion Bearing?

The differential pinion bearing supports the pinion gear and allows it to spin smoothly while managing radial and axial loads. There are usually two bearings: an inner and an outer bearing.

How It Affects the Seal?

If the pinion bearings wear out or become loose, the pinion shaft may move off-center. This misalignment leads to seal failure, resulting in oil leaks and gear misalignment. In advanced designs, such as those employed by CXNOFIA, precision machining and high-load-rated bearings are used to prevent this kind of mechanical drift.

How to Replace a Differential Pinion Seal?

Replacing a differential pinion seal is a task usually best left to professionals, but here's a general outline:

Remove the driveshaft connected to the pinion yoke.

Mark the position of the pinion nut to preserve preload.

Remove the yoke using a puller.

Extract the old seal and inspect the surface for wear.

Install the new seal carefully to avoid damaging the sealing surface.

Reinstall the yoke and tighten the nut to the original mark.

Using a high quality seal—such as those provided in CXNOFIA drivetrain systems—ensures longevity and compatibility with OEM specifications.

Choosing the Right Pinion Seal for Your Application

When selecting a differential pinion seal, you must consider:

Material compatibility (e.g., high temperature rubber or fluorocarbon).

Size tolerance to ensure a tight, leak proof fit.

Operating environment—for example, off-road, commercial, or performance driving.

CXNOFIA's differential components, including seals and bearings, are manufactured to meet rigorous international standards, supporting everything from light vehicles to heavy-duty machinery.

Long Tail Keyword Focus: Real World Scenarios

Differential Pinion Seal Leak Repair for Off Road Trucks

For off road enthusiasts, mud and water can accelerate wear on pinion seals. Using a premium pinion seal with enhanced dust resistance, like those offered by CXNOFIA, ensures better performance in challenging environments.

High Performance Pinion Gear Differential Seal Options for Racing Applications

In motorsport or high RPM applications, differential pinion bearings and seals must handle intense loads and heat. CXNOFIA's advanced sealing systems use reinforced materials to maintain performance at extreme speeds.

How to Prevent Pinion Differential Oil Leaks in Industrial Vehicles

Industrial or agricultural vehicles often operate continuously under load. Ensuring a tight-fitting differential pinion seal and monitoring pinion bearing wear are essential maintenance practices that CXNOFIA's engineers take into account when designing OEM or aftermarket solutions.

Why the Differential Pinion Seal Matters?

To summarize, a differential pinion seal might be a small component, but its function is critical to the health of the differential system. Working hand-in-hand with the differential pinion bearing and pinion gear differential, it ensures that oil stays in, and contaminants stay out.

Whether you're maintaining a light duty vehicle, designing industrial axles, or operating performance equipment, understanding the function and requirements of the pinion differential seal can extend component life and avoid costly repairs.

As a company focused on high precision drivetrain solutions, CXNOFIA is committed to engineering parts that enhance the efficiency, durability, and performance of the entire differential system.
