What Is A Flange Oil Seal?

2025-03-19

Flange seals play a crucial role in mechanical systems, particularly in industries such as automotive, agriculture, and heavy machinery. These seals are designed to prevent fluid leakage and protect rotating components from contamination. A flange seal typically consists of a ring or gasket that is mounted on a flanged surface, ensuring a tight and secure seal between two mechanical parts.

Flange seals are commonly used in applications where high pressure fluids or lubricants must be contained. They are made from various materials, including rubber, silicone, and PTFE, to accommodate different operational environments. By maintaining a leak free connection, flange seals contribute to the efficiency and longevity of mechanical systems.

In addition to preventing leaks, flange seals help in reducing maintenance costs by minimizing wear and tear on mechanical components. When properly installed, they ensure that lubricants remain in place while keeping contaminants out, thereby improving the overall performance of machinery. Industries such as manufacturing, construction, and agriculture heavily rely on flange seals to keep their equipment running smoothly.

What Is a Flange Oil Seal?

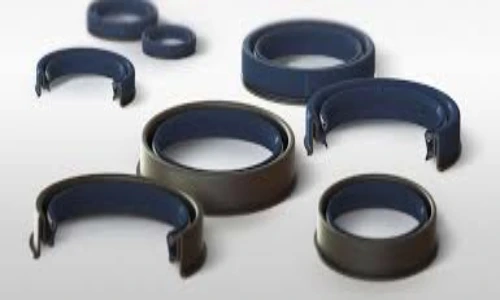

A flange oil seal is a specific type of flange seal designed to prevent oil leakage in rotating machinery. It is commonly used in engines, gearboxes, axles, and other oil-lubricated systems. The primary function of a flange oil seal is to retain oil while keeping out contaminants such as dust, dirt, and moisture.

These seals are essential for maintaining optimal lubrication in moving parts, reducing friction, and preventing premature wear. The flange oil seal is typically installed at the interface of a rotating shaft and a stationary housing, providing an effective barrier against oil loss.

Flange oil seals are widely used in tractor accessories, where they help maintain the performance and reliability of various mechanical components. Given the harsh operating conditions in agricultural machinery, using high quality flange oil seals is essential for ensuring durability and efficiency.

In addition to tractors, flange oil seals are used in industrial pumps, wind turbines, marine engines, and other heavy-duty applications. These seals must withstand high pressures, extreme temperatures, and continuous operation, making material selection and design crucial factors in their performance.

Features and Benefits of Flange Oil Seals

Flange oil seals come with a range of features that make them indispensable in industrial and automotive applications. Some key features and benefits include:

Superior Sealing Performance: Flange oil seals provide a reliable seal against oil leakage, preventing costly fluid loss and ensuring efficient lubrication.

Enhanced Durability: Made from robust materials such as nitrile rubber, fluorocarbon, and PTFE, these seals can withstand high temperatures, pressure, and chemical exposure.

Resistance to Contaminants: A flange lip seal effectively blocks dust, dirt, and moisture from entering critical components, extending the lifespan of machinery.

Easy Installation: Flange oil seals are designed for simple mounting, often requiring minimal tools and effort for replacement or maintenance.

Wide Applications: These seals are used in a variety of machinery, including tractor accessories, automotive engines, construction equipment, and industrial gearboxes.

Another significant advantage of flange oil seals is their ability to operate in high-speed environments. They help maintain stable oil levels even in fast moving machinery, reducing the risk of overheating and component failure. Additionally, modern flange oil seals are engineered with advanced sealing technologies, such as multi-lip designs, to enhance their efficiency and longevity.

How to Choose the Right Flange Oil Seal?

Selecting the right flange oil seal depends on several factors, including operating conditions, material compatibility, and application requirements. Here are some key considerations when choosing a flange oil seal:

Material Selection: Ensure the seal material matches the temperature, pressure, and chemical exposure of your application. For example, nitrile rubber is suitable for moderate temperatures, while fluorocarbon offers better heat and chemical resistance.

Size and Dimensions: Accurately measure the shaft diameter, bore size, and seal thickness to ensure a proper fit.

Operating Conditions: Consider the speed and load of rotating components. High-speed applications require seals with enhanced wear resistance.

Environmental Factors: If the machinery operates in dusty, wet, or corrosive environments, opt for seals with reinforced protection against contaminants.

Compatibility with Tractor Accessories: For agricultural use, ensure the seal is compatible with various tractor accessories, such as axles, gear systems, and hydraulic pumps.

Additionally, choosing a seal with the appropriate lip design is essential. Single lip seals are suitable for basic applications, while double lip or multi lip seals provide enhanced sealing for more demanding conditions. Manufacturers often provide technical data on their seals, including pressure ratings and temperature ranges, which can help buyers make an informed decision.

Maintenance and Replacement of Flange Oil Seals

Proper maintenance of flange oil seals is crucial for extending the lifespan of machinery and preventing unexpected failures. Follow these best practices for maintaining and replacing flange oil seals:

Regular Inspections: Check for signs of wear, such as cracks, leaks, or hardening of the seal material.

Lubrication Maintenance: Ensure that the oil levels and lubrication quality are maintained to prevent excessive friction.

Proper Installation: When replacing a flange oil seal, clean the mounting surface thoroughly and use the correct installation tools to avoid damage.

Timely Replacements: If a seal is worn or damaged, replace it promptly to prevent oil loss and mechanical failure.

Use of High Quality Seals: Investing in high-grade seals from reputable manufacturers ensures better performance and longer service life.

In tractor accessories, maintaining reliable flange oil seals ensures smooth operation and reduces downtime in agricultural equipment. Investing in high quality seals and adhering to maintenance protocols will enhance the performance and durability of machinery.

Regularly inspecting seals for wear and replacing them before they fail can prevent costly repairs and machinery breakdowns. Seals should also be stored properly before installation, away from direct sunlight, moisture, and extreme temperatures, to preserve their material integrity.

A flange oil seal is an essential component in rotating machinery, preventing oil leaks and protecting against contaminants. With its critical role in tractor accessories and industrial applications, choosing the right flange lip seal ensures optimal performance and longevity. By understanding its features, benefits, and maintenance needs, users can maximize the efficiency of their machinery and reduce operational costs.

Whether used in tractors, industrial gearboxes, or automotive engines, flange oil seals play a vital role in ensuring the reliability and functionality of mechanical systems. Investing in high-quality seals and following proper maintenance procedures will lead to better performance and lower long term costs.

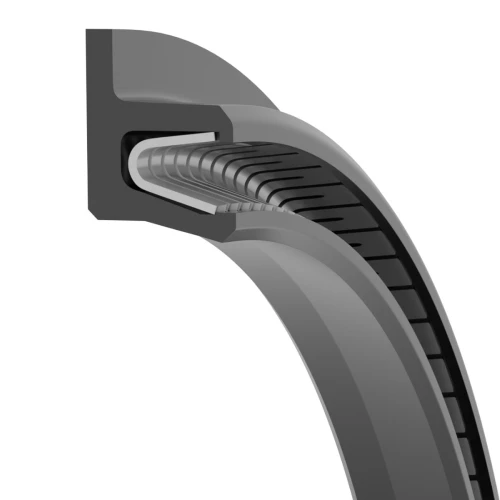

Tractor attachments for sale! Explore our extensive selection of high quality AL159591 MFWD axle drive flange oil seal designed for JD tractors. Manufactured by CXNOFIA, a trusted Chinese supplier of tractor parts for john deere, this kind of flange lip seal ensures superior performance and durability. Benefit from competitive pricing, fast international shipping, hassle free returns, and exclusive limited time offers. Order now!
